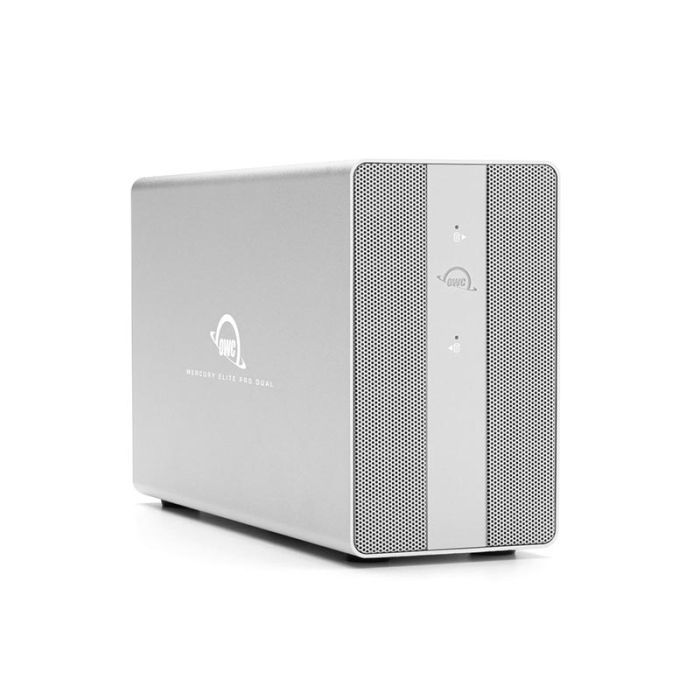

OWC, 40TB Mercury Elite Pro, Dual Raid Storage, USB 3.2 + 3-Port Hub

Be the first to review this product
In stock
SKU
OWCMEDCH7T40
$1,423.50
Add to Compare
Quick Overview
OWC, 40TB Mercury Elite Pro, Dual Raid Storage,USB 3.2 + 3-Port Hub

Expand storage with the Mercury Elite Pro Dual 40TB 2-Bay USB 3.2 Gen 2 RAID Array with 3-Port Hub from OWC. Designed to provide plenty of storage space for creative workflows, this 40TB RAID array features 20TB drives in dual drive bays. Utilizing a USB-C 3.2 Gen 2 interface, this array is capable of transfer speeds up to 1250 MB/s. Hardware RAID control supports RAID 0, 1, SPAN, and JBOD modes.



  • Number of Bays: 2
  • Total Capacity: 40.0TB
  • Standard Mechanism: (2) 20.0TB Seagate Exos X20 Enterprise 7,200RPM Hard Disk Drive; *OWC reserves the right to replace or upgrade to equivalent or better components.
  • Mechanisms Supported: 2.5 inch and 3.5 inch SATA drives
  • Hot Plug Support: Yes
  • Boot Support: Independent volumes bootable in macOS
  • RAID Capable: Yes
  • RAID Levels Supported: RAID 0; RAID 1; SPAN; JBOD
  • RAID Features: Hardware RAID
  • Device Ports: (1) Host Port - USB 3.2 Gen 2 Type-C up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible; (1) USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible; (2) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
  • Data Transfer Rate (Maximum): USB 3.2 Gen 2 : Up to 10 Gb/s (or 1250 MB/s)
  • Chipset: SATA/RAID Controller: (1) Asmedia ASM-1352R; USB Hub: (1) Genesys Logic GL-3590
  • Host Port Requirements: This device will connect at the maximum speed supported by your computer:; Most Thunderbolt 3 and USB 3.2 Gen 2 (USB-C) equipped computers (2016 or later) - 10Gb/s (1250MB/s); Most USB 3.0 or USB 3.1 Gen 1 (USB-A or USB-C) equipped computers (2015 and earlier) - 5Gb/s (600MB/s); Most USB 2.0 equipped computers (2011 and earlier) - 480MB/s; Supports Chromebook, tablet, or phone with a USB-C port
  • Mac OS Compatibility: Mac OS X 10.7 Lion; Mac OS X 10.8 Mountain Lion; OS X 10.9 Mavericks; OS X 10.10 Yosemite; OS X 10.11 El Capitan; macOS 10.12 Sierra; macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 10.15 Catalina; macOS 11.x Big Sur; macOS 12.x Monterey; macOS 13.x Ventura
  • PC OS Compatibility: Windows 7 32-bit Edition; Windows 7 64-bit Edition; Windows Home Server 2011; Windows 8 32-bit Edition; Windows 8 64-bit Edition; Windows 8.1 32-bit Edition; Windows 8.1 64-bit Edition; Windows Server 2012; Windows Server 2012 R2; Windows 10 32-bit Edition; Windows 10 64-bit Edition; Windows Server 2016; Windows 11
  • Linux OS Compatibility: Yes
  • Mobile OS Compatibility: iPadOS 13; iPadOS 14; iPadOS 13; iPadOS 14; iPadOS 15; iPadOS 16; Android 10.x; Android 11.x; Android 12.x; Android 13.x
  • Other OS Compatibility: Chrome OS
  • Driver Required: No
  • External Power Adapter: Yes
  • Power Supply: External UL-listed universal auto-switching power supply
  • AC Input: 100-240V, 50-60Hz, 2A
  • DC Output: +12V, 6A
  • Wattage: 72W
  • Cooling: (1) 60mm 2,500RPM cooling fan
  • Security Slot: Yes
  • Power/Activity LED: Yes
  • Housing Color: Silver
  • Housing Material: Aluminum
  • Dimensions: Height: 14.7 cm (5.8 in); Length: 23.9 cm (9.4 in); Width: 8.5 cm (3.3 in)
  • Weight: 1.4 kg (3.13 lbs)
  • Certifications: CE, FCC, VCCI, RCM, BSMI
  • Ambient Temperature: Operating: 41°F to 95°F (5°C to 35°C)
  • Non-Operating: -4°F to 140°F (-20°C to 60°C)
  • Altitude: Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft); Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
  • Humidity: Operating: 8% to 90% non-condensing; Non-Operating: 5% to 95% non-condensing
  • Noise: Varies depending on drive mechanism installed

More Information

More Information
ManufacturerOther World Computing
Capacity40TB
UPC810100982720
Packaging Width10.2
Packaging Height5
Packaging Length13.2
IsCompatibleTonerNo
IsHUBPrintableNo
IsJumboTonerNo
IsTAACompliantNo
IsMICRTonerNo
Pack Size (UOM)EACH
Warranty3 Year OWC Limited Warranty
Item GroupSTORAGE > EXTERNAL - HDD > DESKTOP
Product TypeDesktop Storage
