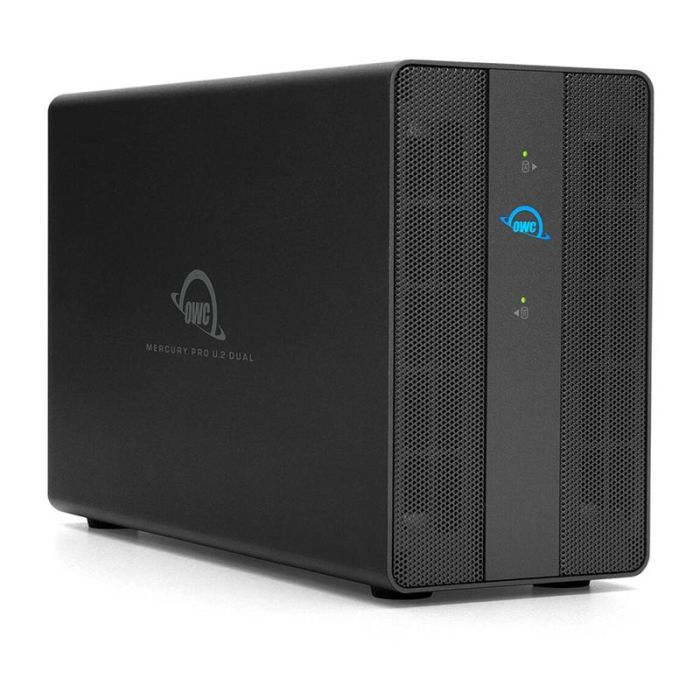

OWC, 32TB (8x4.0TB) Mercury Pro U.2, Thunderbolt NVMe SSD Array w/SoftRAID XT

The Mercury Pro 32TB Thunderbolt 8-Drive SSD 2-Bay Thunderbolt 3 RAID Array from OWC features two bays that each sport a 4TB SSD to deliver a total raw capacity of 32TB for your Thunderbolt 3 system. The eight NVMe M.2 SSDs in each U.2 bay are preconfigured in a hardware RAID 0 array that strips the data across all the drives to provide speeds of up to 2800 MB/s. You can reconfigure the drives into RAID 1, JBOD, RAID 4, RAID 5, and RAID 0+1 depending on your storage needs with the included SoftRAID XT software.

• Mechanisms Supported: 3.5-inch U.2 SSDs; 2.5-inch U.2 SSDs; NVMe M.2 SSDs via 2.5 or 3.5 inch U.2 adapter
• Total Capacity: 32.0TB
• Standard Mechanism: (8) 4.0TB OWC Aura P12 Pro PCIe 3.0 NVMe M.2 2280 SSD via two OWC U2 Shuttles; *OWC reserves the right to replace or upgrade to equivalent or better components.
• Display Support: Up to one 5K display @ 60Hz,; or one 4K display @ 60Hz,; or one 4K display @ 30Hz
• Display Support by Port: Thunderbolt 3: Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter
• Boot Support: Independent volumes bootable in macOS
• Hot Plug Support: Yes
• Chipset: Thunderbolt 3: Intel JHL6540
• Drive Interface: NVMe U.2
• Data Transfer Rate (Maximum): Thunderbolt 3 : Up to 40 Gb/s (or 5000 MB/s)
• RAID Capable: Yes
• Default RAID Level: RAID 0
• RAID Levels Supported: RAID 0; RAID 1; JBOD; RAID 4; RAID 5; RAID 0+1
• RAID Features: Software RAID; Mac OS Compatibility; macOS 10.13 High Sierra; macOS 10.14 Mojave; macOS 10.15 Catalina; macOS 11.x Big Sur; macOS 12.x Monterey; macOS 13.x Ventura
• PC OS Compatibility: Windows 11; Windows 10 64-bit Edition; Windows Server 2016
• Driver Required: No
• Host Port Requirements: Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt1)
• Other Requirements: Requires 2.5 or 3.5 inch NVMe U.2 SSDs or U.2 adapters using the same form factors.
• Power Supply: External UL-listed universal auto-switching power supply
• AC Input: 100-240V, 50-60Hz, 2.0A
• DC Output: +12V, 10A
• Wattage: 120W
• External Power Adapter: Yes
• Power Delivery: Two Thunderbolt 3 ports (15W each)
• Number of Bays: 2
• Device Ports: (1) Host Port - Thunderbolt 3 (USB-C) up to 40 Gb/s (5000 MB/s); (1) Thunderbolt 3 (USB-C) Port
• Cooling: (1) 60mm 3,000RPM cooling fan
• Security Slot: Yes
• Power/Activity LED: Yes
• Housing Color: Black
• Housing Material: Aluminum
• Dimensions: Height: 14.7 cm (5.8 in); Length: 23.9 cm (9.4 in); Width: 8.5 cm (3.3 in)
• Certifications: BSMI; CE; FCC; RCM; VCCI
• Ambient Temperature: Operating: 41°F to 95°F (5°C to 35°C); Non-Operating: -4°F to 140°F (-20°C to 60°C)
• Altitude: Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft); Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
• Humidity: Operating: 8% to 90% non-condensing; Non-Operating: 5% to 95% non-condensing
• Noise: 32.4dB
